Product Overview

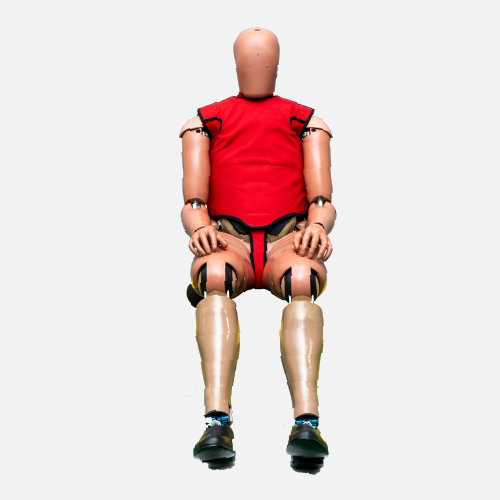

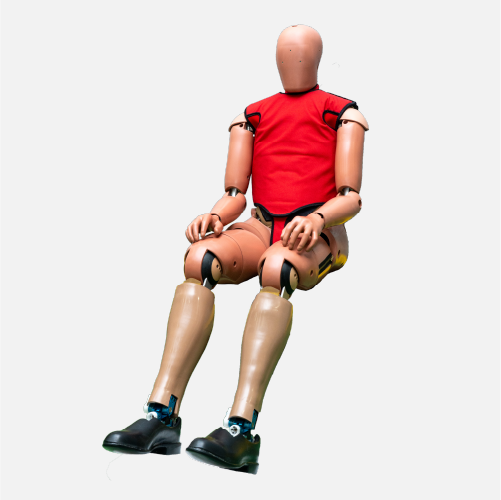

The THOR-50M is a next-generation 50th percentile male dummy developed to reproduce human body behavior in frontal impact events with extremely high accuracy.
Compared with the conventional Hybrid III dummy, the THOR-50M features advanced skeletal structures and an expanded range of joint motion.
Main Applications / Applicable Tests
- Advanced frontal impact testing
-
Tests involving complex occupant behavior, such as small overlap crashes and oblique crashes
- Safety evaluation of automated vehicles
-
Evaluation of occupant protection performance in non-standard seating postures, such as relaxed seating positions.Assessment of injury risks in body regions that were difficult to measure using conventional dummies, including the abdomen and lower extremities.
Product Features
- Innovative Spine and Thoracic Structure
-
Uses a flexible spine closer to that of the human body and elliptical ribs capable of measuring asymmetric deformation.
- Wide Range of Joint Motion
-
Reproduces complex human body movements around areas such as the shoulders and ankles.
Applicable Standards
- Euro NCAP、NHTSA
Options / Customization
- Dedicated Positioning Tools
-
Dedicated H-point machines and tools are available to accurately set the complex initial posture specific to THOR dummies.
Technical Strengths / Differentiation Points
- Compatibility with Oblique Impact
-
The THOR-50M is a frontal impact dummy capable of accurately outputting injury values not only for frontal loading, but also for oblique loading.
Specifications (Typical Values)
※Please contact JASTI Co., Ltd. for quotations and detailed information.
| Item | Specification |
|---|---|
| Height, standing | Approx. 175 cm |
| Total weight | Approx. 76.0 kg |
| Standard number of sensor channels | Approx. 100–150 channels when fully expanded |
