Product Overview

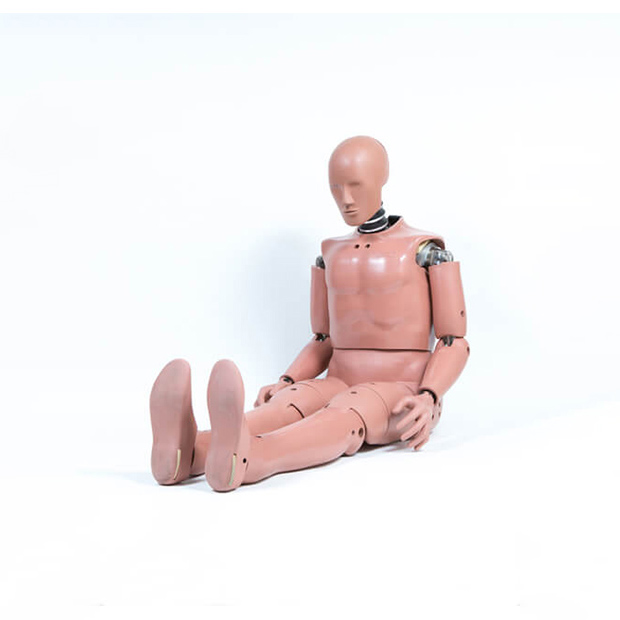

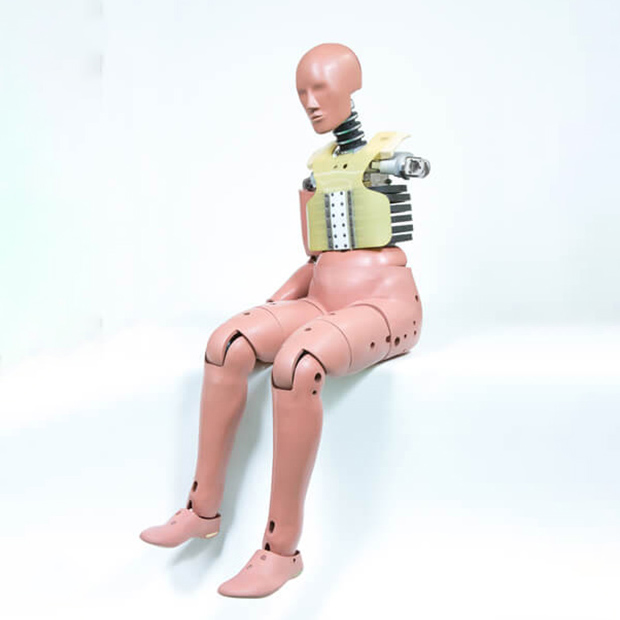

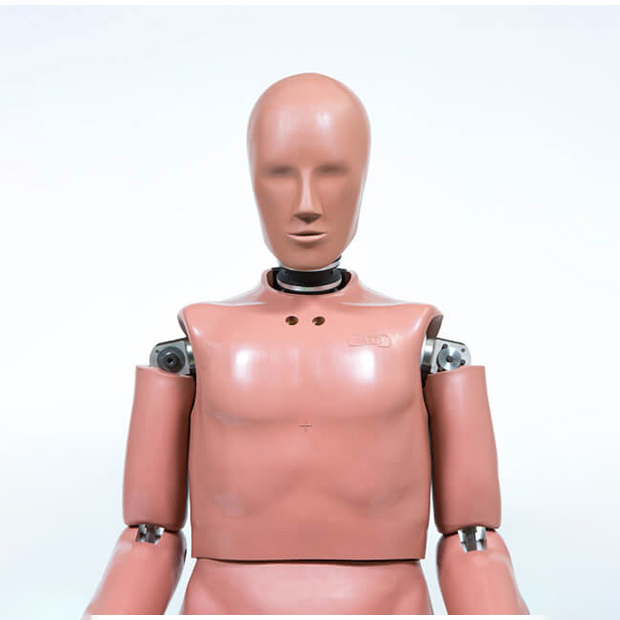

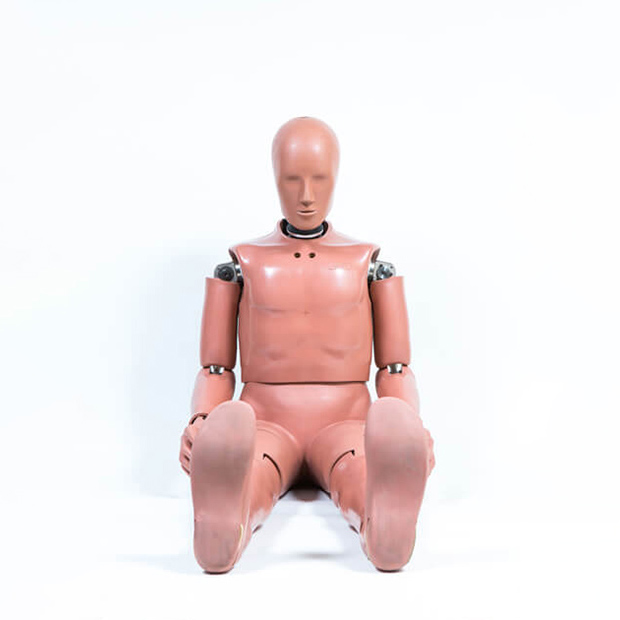

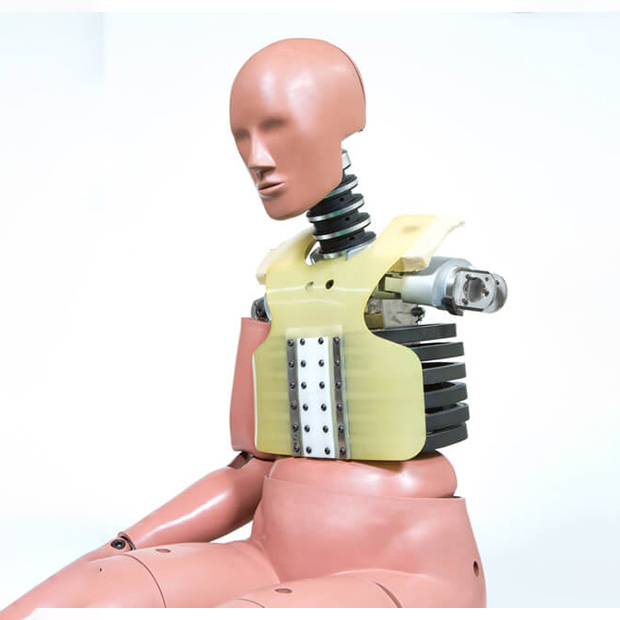

The Hybrid-III 50th Percentile Male is the most widely used frontal impact dummy representing the physique of an average adult male.
Main Applications / Applicable Tests
- Frontal impact testing
-
Occupant protection evaluation in full-lap and offset frontal crashes.
- Restraint system development
-
Testing of seat belt performance and airbag deployment performance.
- Interior layout design
-
Evaluation of comfort and safety in the driver and front passenger seats.
Product Features
- High Repeatability
-
Strict calibration minimizes data variation between test dummies.
- Human-Like Behavior
-
Faithfully reproduces human-specific movements during impact, such as neck flexion characteristics and chest deflection.
Applicable Standards
- (USA) FMVSS 208 (EU) UN ECE R94
- Assessment programs in various countries, including C-NCAP and JNCAP
Options / Customization
- Abdominal Sensors
-
Additional pressure sensors can be installed to detect belt intrusion into the abdomen, also known as the submarining phenomenon.
Related Products
THOR-50M： A next-generation frontal impact dummy with higher biofidelity than the Hybrid III.
Dummy calibration test equipment： Equipment required to maintain dummy performance, such as head drop test equipment.
Technical Strengths / Differentiation Points
- Global De Facto Standard
-
Used as a common standard by certification bodies and automobile manufacturers around the world, offering extremely high data compatibility.
- Maintainability
-
Stable component supply enables quick repair in the event of damage.
Specifications (Typical Values)
※Please contact JASTI Co., Ltd. for quotations and detailed information.
| Item | Specification |
|---|---|
| Height, standing | Approx. 175 cm |
| Total weight | Approx. 78 kg |
| Standard number of sensor channels | Approx. 30–40 channels, adjustable depending on specifications |
| Calibration | Calibration available through an ISO/IEC 17025:2017 accredited laboratory |
