Product Overview

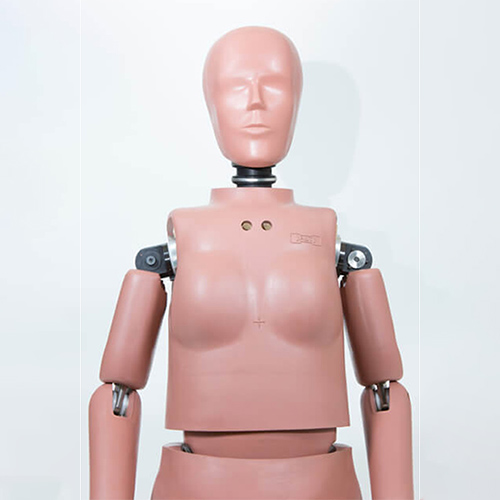

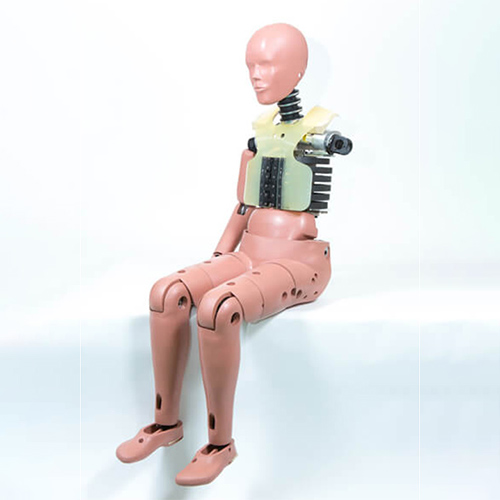

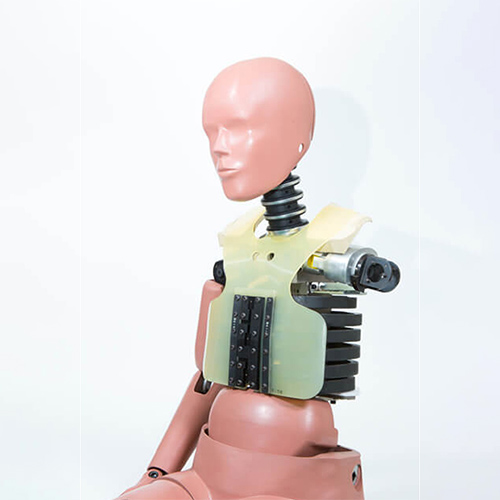

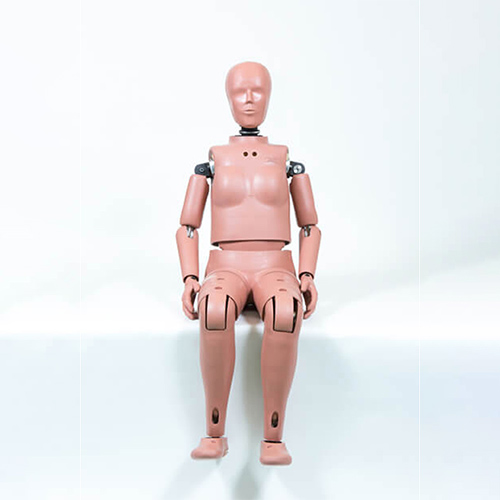

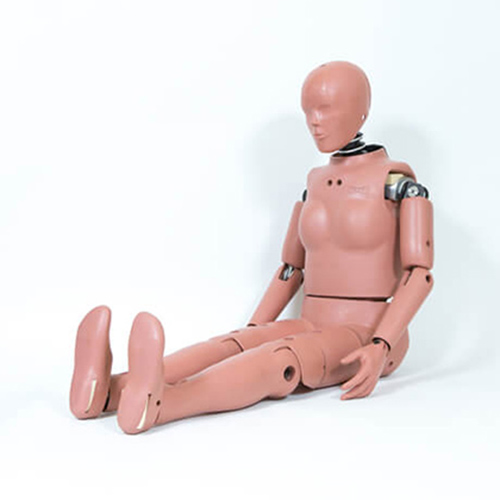

The Hybrid-III 5th Percentile Female is a frontal impact dummy representing a particularly small adult female physique, corresponding to the 5th percentile of U.S. females.
Main Applications / Applicable Tests
- Front passenger seat and rear seat evaluation
-
Evaluation of safety in seating positions other than the driver seat.
- Seat belt fit evaluation
-
Verification of belt fit and submarining behavior for small occupants.
Product Features
- Biofidelity
-
Faithfully reproduces the physical responses of a small human body, including neck rotation, chest deflection, and limb movement.
Applicable Standards
- (USA) FMVSS 208 (EU) UN ECE R94
- Assessment programs in various countries, including C-NCAP and JNCAP
Options / Customization
- Skin and Flesh Thickness Adjustment
-
Skin and pad variations are available according to specific test conditions.
Related Products
Dummy calibration test equipment： Equipment required to maintain dummy performance, such as head drop test equipment.
Technical Strengths / Differentiation Points
- Standard for Occupant Size Diversity in Safety Evaluation
-
A global standard model for evaluating protection performance for women and children, which cannot be fully covered by average male occupant models alone.
- Maintainability
-
Stable component supply enables quick repair in the event of damage.
Specifications (Typical Values)
※Please contact JASTI Co., Ltd. for quotations and detailed information.
| Item | Specification |
|---|---|
| Height, standing | Approx. 150 cm |
| Total weight | Approx. 49 kg |
| Standard number of sensor channels | Approx. 30–40 channels, adjustable depending on specifications |
| Calibration | Calibration available through an ISO/IEC 17025:2017 accredited laboratory |
