Product Overview

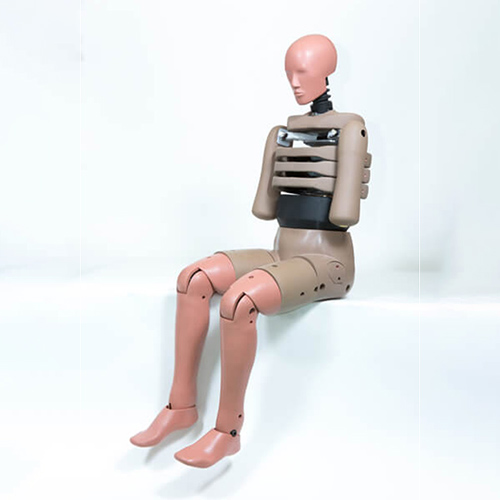

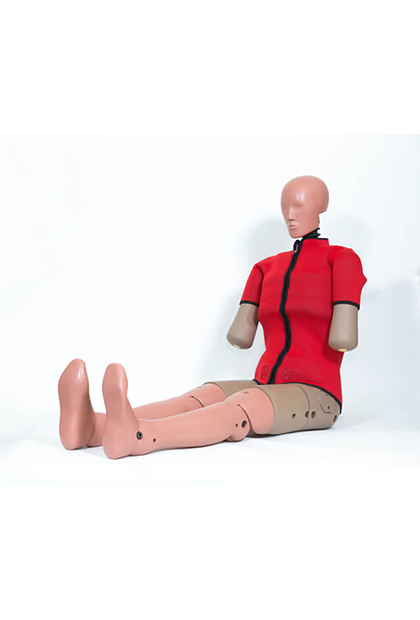

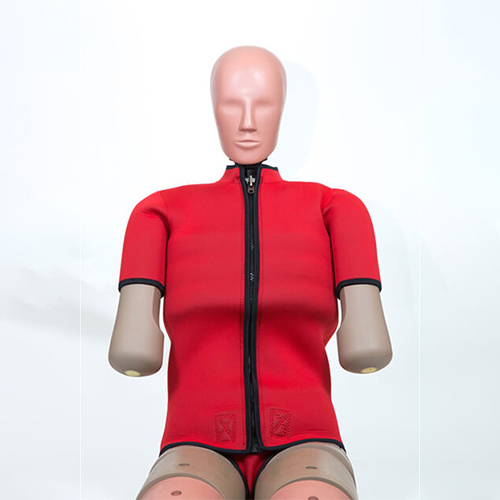

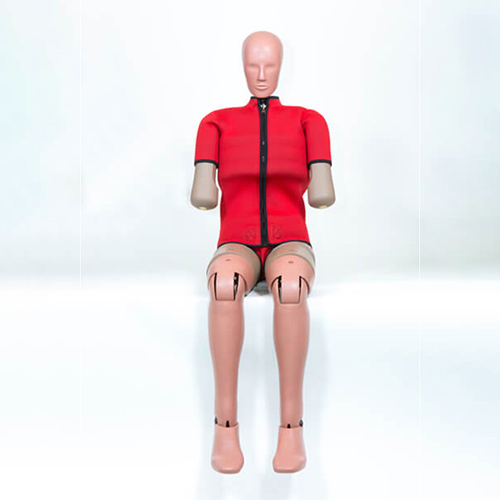

The ES-2 is a side impact dummy representing the physique of an average adult male, adopted in side impact test standards in Europe and many other countries.
Main Applications / Applicable Tests
- Side impact testing
-
Vehicle side impact testing using a moving deformable barrier (MDB)
- Assessment testing
-
Side impact evaluation in programs such as Euro NCAP and JNCAP
Product Features

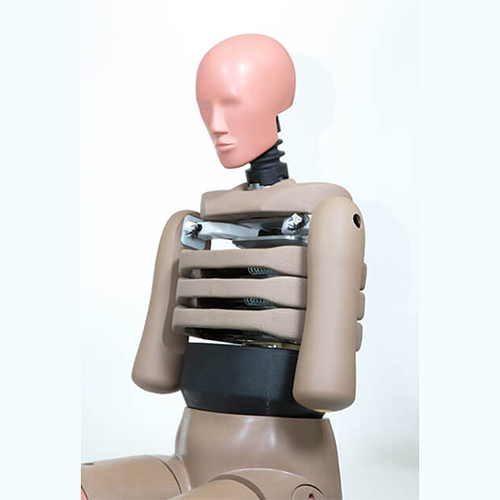

- Thoracic Ribs
-
Three ribs use linear guides to smoothly and accurately measure lateral loading.
Applicable Standards
- ECE R95
Options / Customization
- ES-2re（Rib Extension）
-
For the U.S. market and FMVSS 214 applications, the rear rib brackets are modified to reduce interference in measurement.
Related Products
Technical Strengths / Differentiation Points
- Detection of Subtle Injury Risks
-
Visualizes localized injury risks caused by interaction with structures such as the B-pillar and door components, which may not be detected using average-size occupant models.
Specifications (Typical Values)
※Please contact JASTI Co., Ltd. for quotations and detailed information.
| Item | Specification |
|---|---|
| Height, standing | Approx. 170 cm |
| Total weight | Approx. 72.4 kg |
| Standard number of sensor channels | Approx. 60–140 channels, adjustable depending on specifications |
