Product Overview

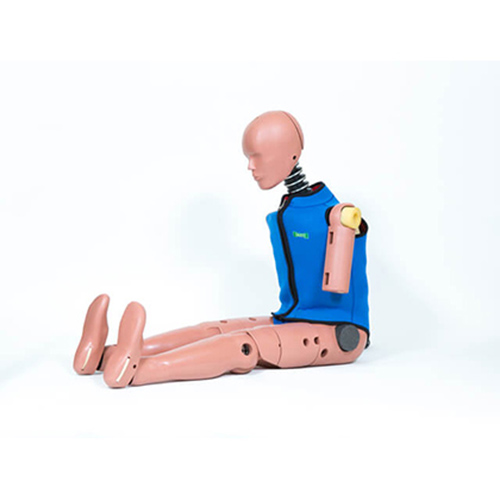

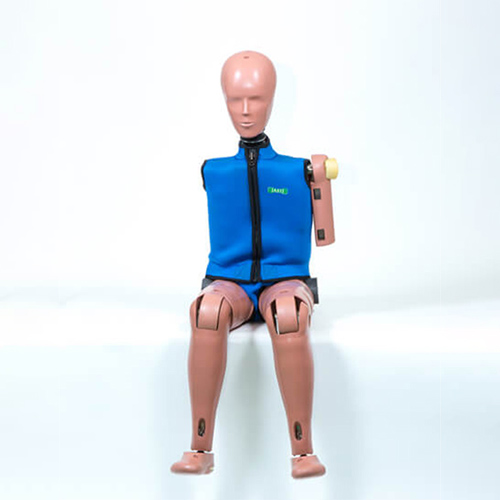

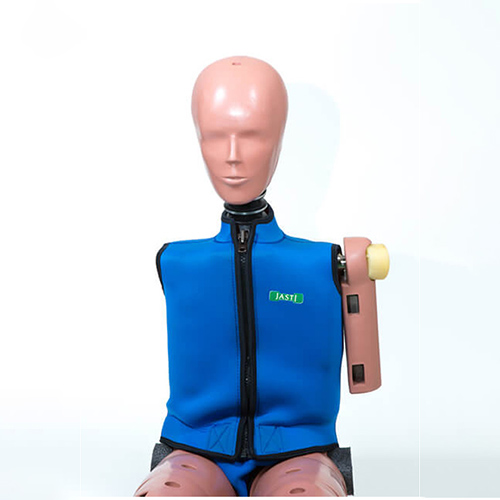

The SID-IIs is a small adult female side impact dummy adopted in safety standards in the United States and Europe.
Main Applications / Applicable Tests
- Side impact testing
-
Vehicle side impact testing using a moving deformable barrier (MDB)
- Assessment testing
-
Side impact evaluation by the Insurance Institute for Highway Safety (IIHS)
Product Features

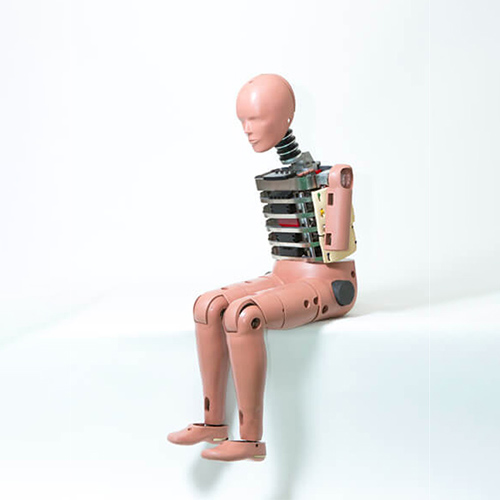

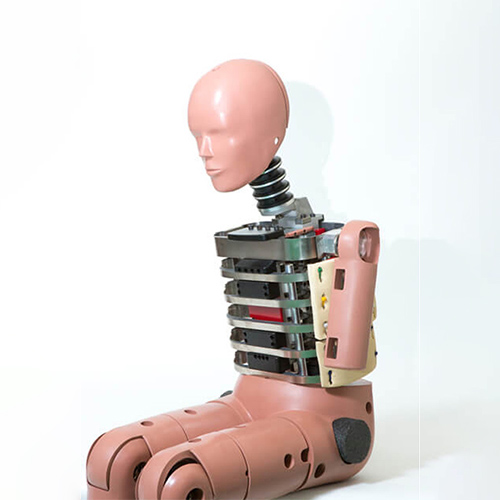

- Advanced Thoracic and Abdominal Rib Structure
-
The dummy uses ribs with proprietary damping functions to accurately measure compressive loading from the side.
Applicable Standards
- FMVSS 214
- 49 CFR Part 572 Subpart V
Related Products
Technical Strengths / Differentiation Points
- Detection of Subtle Injury Risks
-
Visualizes localized injury risks caused by interaction with structures such as the B-pillar and door components, which may not be detected using average-size occupant models.
Specifications (Typical Values)
※Please contact JASTI Co., Ltd. for quotations and detailed information.
| Item | Specification |
|---|---|
| Height, standing | Approx. 151 cm |
| Total weight | Approx. 44.5 kg |
| Standard number of sensor channels | Approx. 60–140 channels, adjustable depending on specifications |
