Product Overview

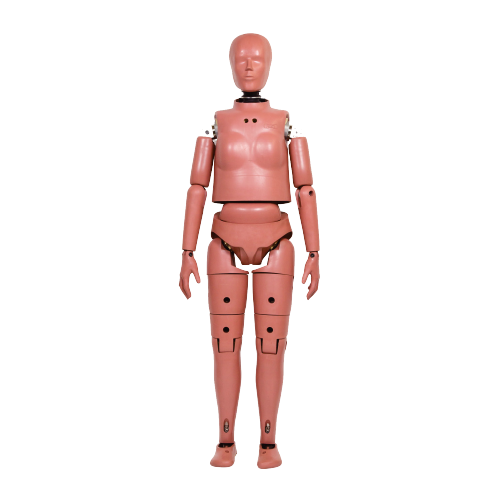

This pedestrian protection test dummy is based on the U.S.-standard Hybrid-III 5th Percentile Female dummy and features modified legs and joints.
Main Applications / Applicable Tests
- Pedestrian protection performance testing
-
Verification of impact loading on vehicle front-end structures, including bumpers, hoods, and pillars
- Accident reconstruction studies
-
Verification of human body behavior in actual pedestrian accidents
Product Features
- Optimization for Pedestrian Applications
-
Designed to maintain a standing posture and reproduce whole-body behavior during impact.
Applicable Standards
- Based on the fundamental design of SAE J2862, Hybrid III 5th Female
Options / Customization
- Skin and Flesh Thickness Adjustment
-
Skin and pad variations are available according to specific test conditions.
Specifications (Typical Values)
※Please contact JASTI Co., Ltd. for quotations and detailed information.
| Item | Specification |
|---|---|
| Height, standing | Approx. 150 cm |
| Total weight | Approx. 47 kg |
| Standard number of sensor channels | Approx. 25–40 channels, adjustable depending on specifications |
