ISO-C-CS
Product Overview

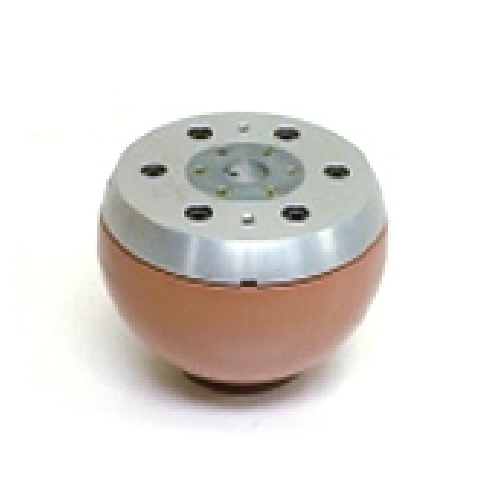

An ISO-compliant child headform impactor with a total mass of 3.5 kg.
Main Applications / Applicable Tests
- Head protection performance evaluation
-
Measurement of impact absorption performance when an occupant’s head contacts interior components during a collision.
Product Features
- High Repeatability
-
Strict quality control minimizes variation in test data between tests.
- Excellent Durability
-
Designed to withstand repeated impact testing while also offering ease of maintenance.
Applicable Standards
FMVSS 201
Related Products
Technical Strengths / Differentiation Points
- Precise Weight Control
-
Strictly maintains a total mass of 3.5 kg within the specified tolerance and accurately reproduces the center of gravity required by the standard.
- Total Support
-
Based on JASTI’s extensive expertise, we provide not only standalone impactor sales, but also consultation on calibration and measurement systems.
Specifications (Typical Values)
※Please contact JASTI Co., Ltd. for quotations and detailed information.
| Item | Specification |
|---|---|
| Shape | Hemispherical shape compliant with ISO specifications |
| Total mass | 3.5 ± 0.05 kg |
| Standard number of sensor channels | 3 channels |
